Model |

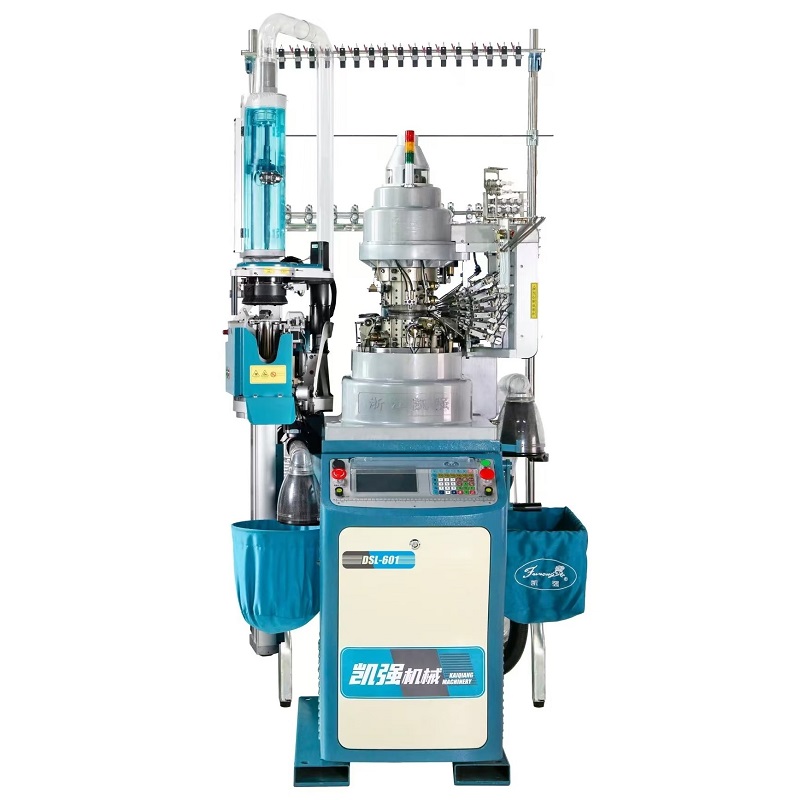

DSL601 |
|
Double cylinder,2 electronic needle selectors,with automatic turning and toe linking device. |
|
|
Cylinder Diameter |
4 inch |
|
Number of Needles |
120N-220N |
|
Working speed |
4” 250-280 RPM |
|
Air Consumption |
0.1-0.15m³/MIN-SET |
|
Voltage |
380V(3-phase) |
|
Main motor |
1.5Kw |
|
Fan motor |
0.75Kw |
|
Computer |
0.5Kw |
|
Net weight |
360kg |
|
Gross weight |
410kg |
|
Volume (include normal yarn creel) |
150*120*230cm |
|
Package Size |
102*105*190cm |
TECHNICAL FEATURE
|
1. A fully automatic model that integrates knitting,turning socks,and linking socks toe,capable of weaving men’s and women’s socks ,sports socks and student socks etc.Including the functions of flat,rib and veiled design. |
|
2. Innovative device complete automatic seam linking to make socks toe more dense and flat. |
|
3. Servo motor with electronic drive. |
|
4. 6 pneumatic yarn fingers. |
|
5. 4color yarns sequence-exchange knitting. |
|
6. Various sensor for fault(Yarn,Inlet, Yarn cutting,Defected Needle,Selector cutting,Electric fault) |
|
7. With automatic lubricant device. |
|
8. New structure having two socks outlets. |
|
9.Simple style design, with more beautiful appearance. |
|
10.Double actuators make sure socks knitting steadily. |
|
11. Adjustment of socks quality by stepping motor. |
|
12."Y” form of heel part. |
